IRON ARMOUR CHIN,DIP ASSIST MACHINE

**** arriving mid November*******

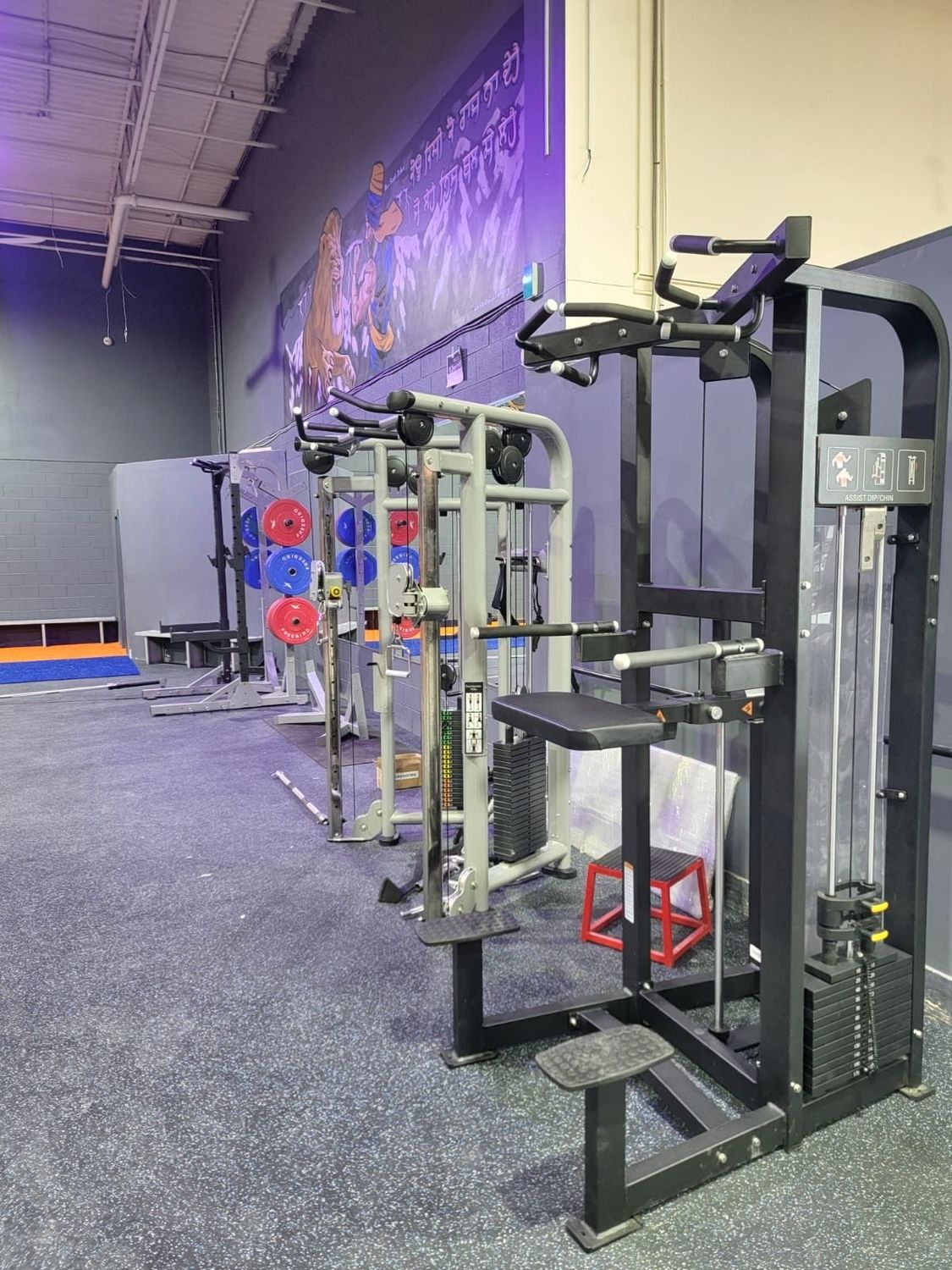

The Iron Armour chin,dip assist machine is a fundamental part of the strength training progression. Foldable kneepads give the option for unassisted training, and multi-position handles allow exercise variation.

• Knee pads fold down and away from user for unassisted training
• Multi-position handles allow for variation in exercise and provide size adaptability

SIZE (L X W X H)

46" x 45" x 87" (117 cm x 115 cm x 221 cm)

RECOMMENDED LIVE AREA

70" x 45" x 87" (metric cm: 178 x 113 x 221)

MACHINE WEIGHT

655 lb (298 kg)

WEIGHT STACK

175 lb (82 kg)

MAX USER WEIGHT

300 lb (136 kg)

CABLES

7×19 strand construction, lubricated, nylon-coated cable meets U.S. military specifications

INSTRUCTIONAL PLACARDS

Easy-to-follow instructions illustrate proper use and muscles trained; Axis of rotation marked with red indicator to help cue correct alignment

BELTS AND PULLEYS

4-1/2" (11 cm) and 6" (15 cm) diameter fiberglass-impregnated nylon pulleys feature sealed bearings

CUSHIONING

Pads are molded with radius on edge for improved comfort; All edges are stitched to eliminate any folds in the material that would limit durability

SHROUDS

Standard rear shroud on SE models; Optional full front shroud on SE models

WEIGHT PLATES AND GUIDE RODS

Solid-steel weight plates. Top weight plate is fitted with self-lubricating bushings; 7/16" (11 mm) diameter weight selector pin magnetically locks in place and is connected to stack to prevent loss; Drop down incremental weight system (standard on SE models)

ADJUSTMENTS

Roller mechanism on seat adjustment provides smooth operation

FOOT PLATFORMS

Polyethylene spray-coated for impact, corrosion, and abrasion resistance

FRAME DESCRIPTION

Each frame receives an electrostatic powder coat finish to ensure maximum adhesion and durability; Standard rubber feet protect base of the frame and prevent the machine from slipping; 11-gauge steel frame ensures maximum structural integrity

HAND GRIPS

Hand grips are an extruded thermo rubber compound that is non-absorbing and wear-and-tear resistant; Grips retained with aluminum collars, preventing them from slipping during use
